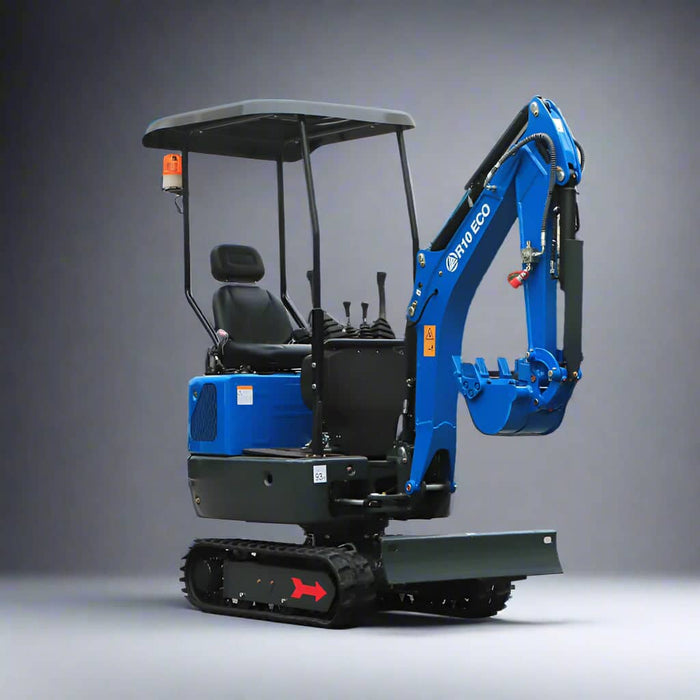

The Rippa R10 is a 1-tonne-class mini excavator that balances compact size with genuinely useful reach. It runs a Kubota Z482 2-cylinder diesel and is listed with a hydraulic quick hitch. Price at time of writing: $13,499.
Who the R10 suits
First-time owners, homeowners and small landscaping businesses who want a light, trailerable machine with enough depth for reticulation, soakwells and small footings.
Best jobs for the R10
- Reticulation, drainage and soakwell holes
- Fence and pergola footings with an auger
- Garden and lawn renovations
- Small retaining wall footings
- Stump and root removal around the yard
Strengths
- Adjustable track width — narrow for access, wide for stability
- Hydraulic quick hitch listed
- Low ground pressure helps protect lawns
- Easy to tow on a suitable trailer
Consider
- Lower hydraulic flow limits heavy hydraulic attachments
- Small fuel tank means more frequent refuelling on long days
R10 specifications
| Specification | As listed |
|---|---|
| Engine | Kubota Z482, 2-cylinder, water-cooled diesel |
| Displacement | 0.479 L |
| Operating weight | 978 kg |
| Bucket capacity | 0.014 m³ |
| Travel speed | 0–1.5 km/h |
| Ground pressure | 25.53 kPa |
| Climbing ability | 30% |
| Digging force | 9.2 kN |
| Max digging distance | 3,233 mm |
| Max digging depth | 1,833 mm |
| Max dump height | 2,247 mm |
| Max digging height | 3,021 mm |
| Track width adjustment | 912–1,212 mm |
| Hydraulic max flow | 18 L/min |
| Rated / max pressure | 18 MPa / 20 MPa |
| Fuel tank | 5.5 L |
| Hydraulic oil tank | 12.5 L |
| Length × width × height | 2,430 × 912 × 2,201 mm |
| Hydraulic pump warranty | 1 year (as listed) |
Specifications are taken from our product listing and may change — confirm details on the R10 product page before you buy.
Attachments that fit the R10
These attachments list the R10 in their name. Prices are online prices at the time of writing.
Showing 14 of 15 matching attachments. See all attachments.
How the R10 compares
The R13 PRO adds a 3-cylinder Kubota D722, more hydraulic flow (25 L/min) and a dual-speed travel motor for a moderate price step.
See every model side by side in our Rippa excavator comparison or read the mini excavator buying guide.
See it in person: visit 10 Bushby St, Bellevue WA 6056 or call 1300 263 551. You can also send an enquiry.
Our Bellevue team can help you choose the right machine and attachments.
